FITLET2-J3455-P36 - Intel Celeron J3455, 9-36V DC input version

(Item no.: FITLET2-J3455-P36)
Fitlet2 is a unique Fanless micro-sized PC powered by dual and quad core Intel Apollo Lake processors. With latest technology, extreme reliability, enhanced flexibility and low power consumption, Fitlet2 is a beautifully designed PC for 24/7 data collection, monitoring and processing applications under the standard range of operating temperatures (-0C / +50C).

The hardware and housing of fitlet2 are designed together from the ground-up to minimize size and maximize capabilities, durability and thermal performance.

Fitlet2 measures only 112 mm X 85 mm X 25 mm
5 year warranty

Add a FACET-Card to include the following:
  • Extra Gbit Ethernet ports
  • Extra USB ports
  • 4G LTE modem in conjunction with WiFi
  • Power-over-Ethernet device (PoE PD)
  • More FACET cards are under development
Configure the Fitlet2 with Intel Celeron J3455 CPU and extended DC input 9-36V. below. Any inquiries can be sent to info@minidis.com or by phone +31 (0)85-210 3800.
Information:

Brand
Fitlet
Fan / Fanless
Fanless
CPU
Intel Celeron J3455
Network options
GBIT LAN(standard), WIFI + BT(option), 4G modem(option)
Storage
Configurable
Memory
Configurable
Operating System
Windows 10 Professional, Windows 10 IoT Enterprise, Linux
LAN ports
2x Gbit LAN ports, can be extended to 4 Ports (FLAN Facet card)
USB ports
2x USB 3.0 + 2x USB 2.0. Up to 8 Ports (FCUSB Facet card)
Audio
Realtek ALC1150 audio codec
HDMI ports
1x HDMI Port + 1x Display Port
RS232 serial port
Requires mini-serial to DB-9 adapter cable
DC Input Voltage
9-36 Volt
Dimensions
11.2cm x 8.4cm x 3.4cm
Picture(s):

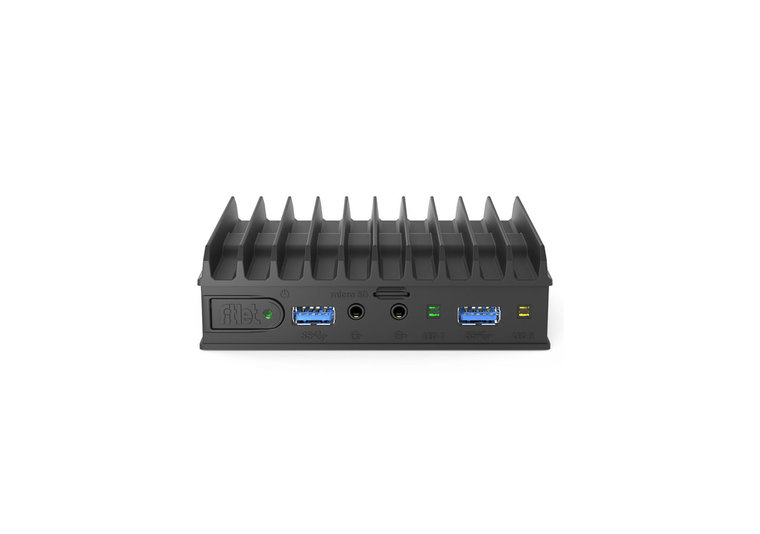

FITLET2-J3455-P36 - Intel Celeron J3455, 9-36V DC input version_
FITLET2-J3455-P36 - Intel Celeron J3455, 9-36V DC input version_
FITLET2-J3455-P36 - Intel Celeron J3455, 9-36V DC input version_
